3D-Modeling, Piping Engineering and Drafting Services

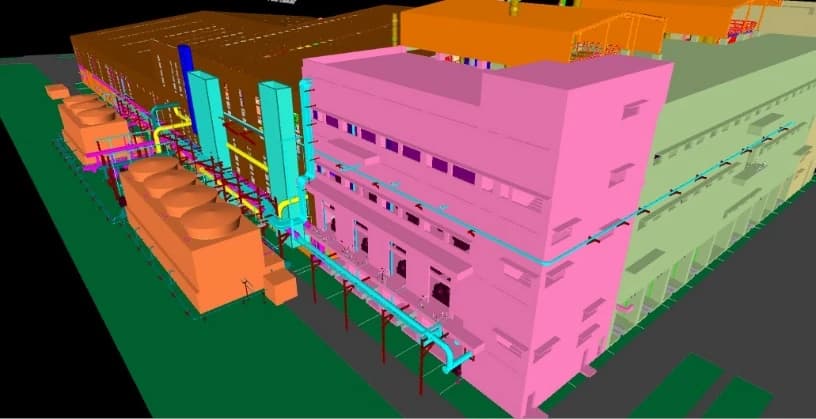

Comprehensive piping engineering, 3D modeling, and technical drafting services delivered for 3B The Fibre Glass Company. Using AVEVA E3D, Deep Ocean provided complete facility modeling, piping layout design, stress reports, isometrics, MTOs, civil interfaces, and equipment arrangement drawings.
Project Scope

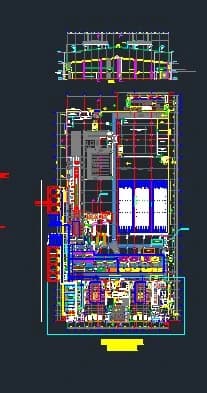

3D Model using E3D software, Piping Layout, MTO, Isometrics, Stress report, Support, Civil & Equipment layout.
Key Deliverables
Project Highlights
- •Delivered end-to-end 3D modeling and drafting in AVEVA E3D

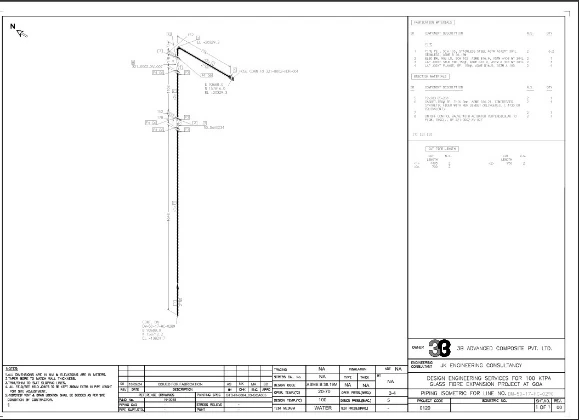

- •Accurate extraction of piping layouts, isometrics, and bulk material take-offs
- •Performed pipe stress analysis reports ensuring structural integrity across thermal cycles
- •Detailed civil interface and equipment layout drawings for plant erection
Outcome
Delivered a complete, fabrication-ready engineering dossier enabling smooth execution and equipment placement.
8+
Years
Engineering Experience
150+
Work Packages
Delivered Successfully
4
Core Disciplines
Piping, 3D, Stress & Civil
ASME/API
Standards
Code-Compliant Delivery
